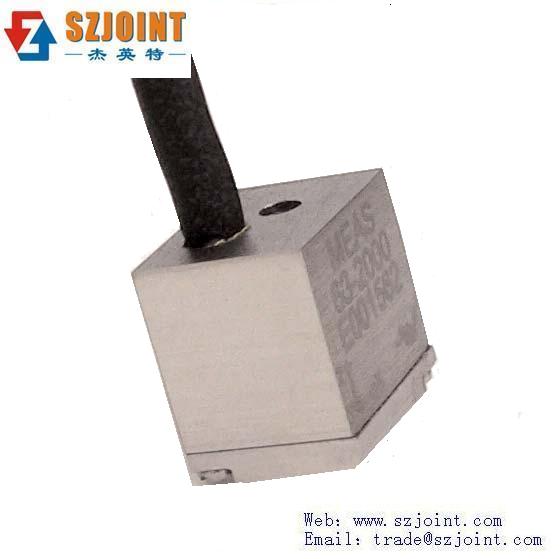

Description: The Model 63 accelerometer is a small, compact triaxial device designed for vehicle impact and road testing. Its mechanical overload stops provide high shock protection in rugged applications. Featuring ranges from 500 g to 2000 g and frequency response to 3000 Hz, this sensor is easily mounted in hard to reach places.
Features:
• DC Response
• Durable Cable
• Reliable Performance
• Low Cost
• 2nd Generation MEMS Sensing Elements
• 2000 g Full Scale Range
• 2-10 VDC Excitation
• -20 to +85°C Operating Temperature
• <±50 mV Zero Measurand Output
• Mechanical Overload Stops
• Replaceable Sensors
Applications: Crash Testing, Impact Testing, Off-Road Testing, Road Testing
Parameters
|
Range(g) |
±500 |
±1000 |
±2000 |
|
Sensitivity(mV/g) |
0.9 |
0.15 |
0.15 |
|
Frequency Response (Hz) |
0-3000 |
0-3000 |
0-3000 |
|
Non-Linearity (%FSO) |
1 |
1 |
1 |
|
Transverse Sensitivity(%) |
<3 |
<3 |
<3 |
|
Output Resistance (KΩ) |
2.7-4. 8 |
2.7-4. 8 |
2.7-4. 8 |
|
Excitation (VDC) |
2 to 10 |
2 to 10 |
2 to 10 |
| Shock Limit (g) | 5000 | 7000 | 10000 |
|
Zero Acceleration Output(mV) |
<±50 |
|
Weight with out cable(g) |
7 |
|
Case Material |
stainless steel |
|
Operating Temp. (°C) |
-20-85 |
|
Compensated Temp. (°C) |
/ |
